PRODUCT FEATURES

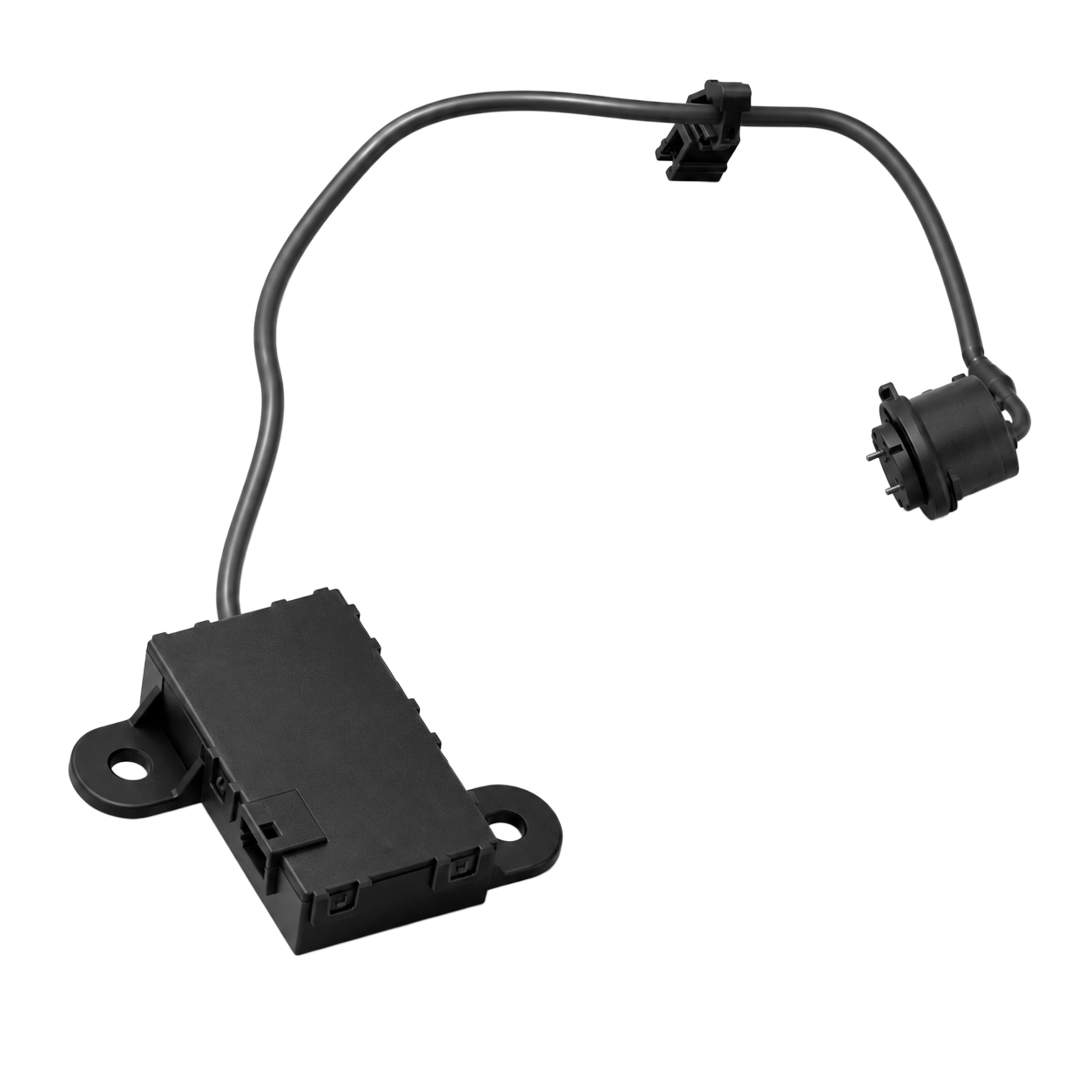

M30 Negative Ion Generator Module

High Negative-Ion Output: Delivers more than 2,000 × 10⁴ ions/cm³, measured 10 cm from the carbon brush at 5.5 m/s airflow and 12 VDC.
Efficient Automotive Operation: Designed for 9–16 VDC systems with ≤100 mA operating current and only ≤0.1 mA standby current.
LIN Control for OEM Systems: A 19.2K LIN slave-node interface with a SIT1028QT/1/5V0 transceiver supports vehicle control and feedback.
Ultra-Low Ozone Performance: Ozone is limited to ≤0.01 ppm, with operation from −30°C to 85°C and storage from −40°C to 85°C.

TECHNICAL DATA

M30 Negative Ion Generator Module Specifications

Electrical & Ion Output

Product Name: M30 Negative Ion Generator Module
Model: M3001
Rated Voltage: 12 VDC
Operating Voltage: 9–16 VDC
Operating Current: ≤100 mA
Standby Current: ≤0.1 mA
High-Voltage Output: ±3,000 to ±4,000 V
Negative Ion Output: >2,000 × 10⁴ pcs/cm³
Ozone Concentration: ≤0.01 ppm

Communication & Environmental

LIN Communication Voltage: 8–18 V
Node Type: Slave node
Baud Rate: 19.2K
Deviation: ±1.5%
LIN Transceiver: SIT1028QT/1/5V0
External Pull-Up Resistor: None
Internal Pull-Up Resistor: 25 kΩ
Operating Temperature: −30°C to 85°C
Storage Temperature: −40°C to 85°C
Operating Humidity: 35–85% RH

Test conditions: Ion output is measured at 5.5 m/s airflow, 10 cm from the carbon brush, at 12 VDC. Actual results may vary with installation and airflow.
