Connector Pinout
| Pin | Signal | Function |
|---|---|---|
| 1 | VCC | Power positive |
| 2 | LIN | LIN data |
| 3 | NC | No connection |
| 4 | GND | Power negative |
Interface: Connector housing model: TE-1565749-1.
PRODUCT FEATURES

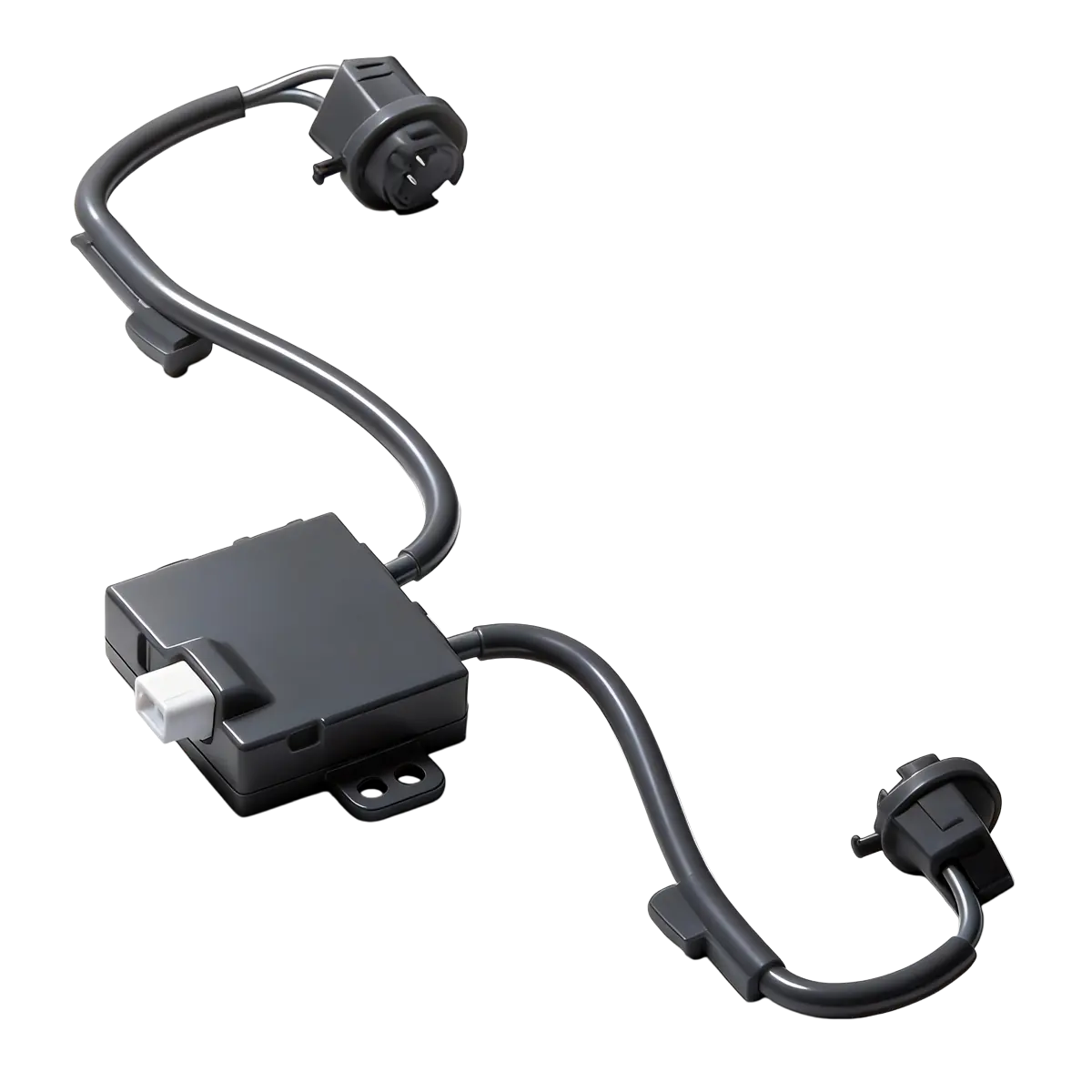

M2801 Negative Ion Generator Module
- High Negative-Ion Output: Produces more than 10 million pcs/cm³ at 10 cm and 3 m/s airflow under normal temperature and pressure.
- Low-Power Automotive Operation: Designed for 9–16 VDC, with ≤100 mA operating current and ≤0.1 mA standby current.
- Automotive LIN Communication: Uses a SIT1021QT/1 LIN transceiver with data rates up to 20 kbps and automotive-qualified protections.
- Wide Environmental Range: Supports −40°C to 85°C operation, −40°C to 90°C storage and 35–85% RH.
TECHNICAL DATA
M2801 Negative Ion Generator Module Specifications
Electrical & Ion Output
- Product Name
- M2801 Negative Ion Generator Module
- Source Specification Model
- M28
- Version
- V1.0
- Operating Voltage
- 9–16 VDC
- Operating Current
- ≤100 mA
- Standby Current
- ≤0.1 mA
- Communication
- LIN line communication
- Negative Ion Concentration
- >10 million pcs/cm³
- Ozone Concentration
- <1.07 mg/m³
Communication & Environmental
- Ion Test Conditions
- Normal temperature/pressure, 10 cm, 3 m/s
- LIN Transceiver
- SIT1021QT/1
- LIN Standards
- LIN 2.x / ISO 17987-4:2016 / SAE J2602
- LIN Data Rate
- Up to 20 kbps
- Operating Temperature
- −40°C to 85°C
- Storage Temperature
- −40°C to 90°C
- Operating Humidity
- 35–85% RH
OEM INTEGRATION
Connector Pinout
The M2801 uses a 4-pin automotive interface for vehicle power and LIN communication.
TECHNICAL DATA
M2801 Negative Ion Generator Module Datasheet Downloads
NameTypeFormatSizeDownload
M2801 / M28 Negative Ion Module Functional SpecificationDatasheetPDF4.0 MB
