PRODUCT FEATURES

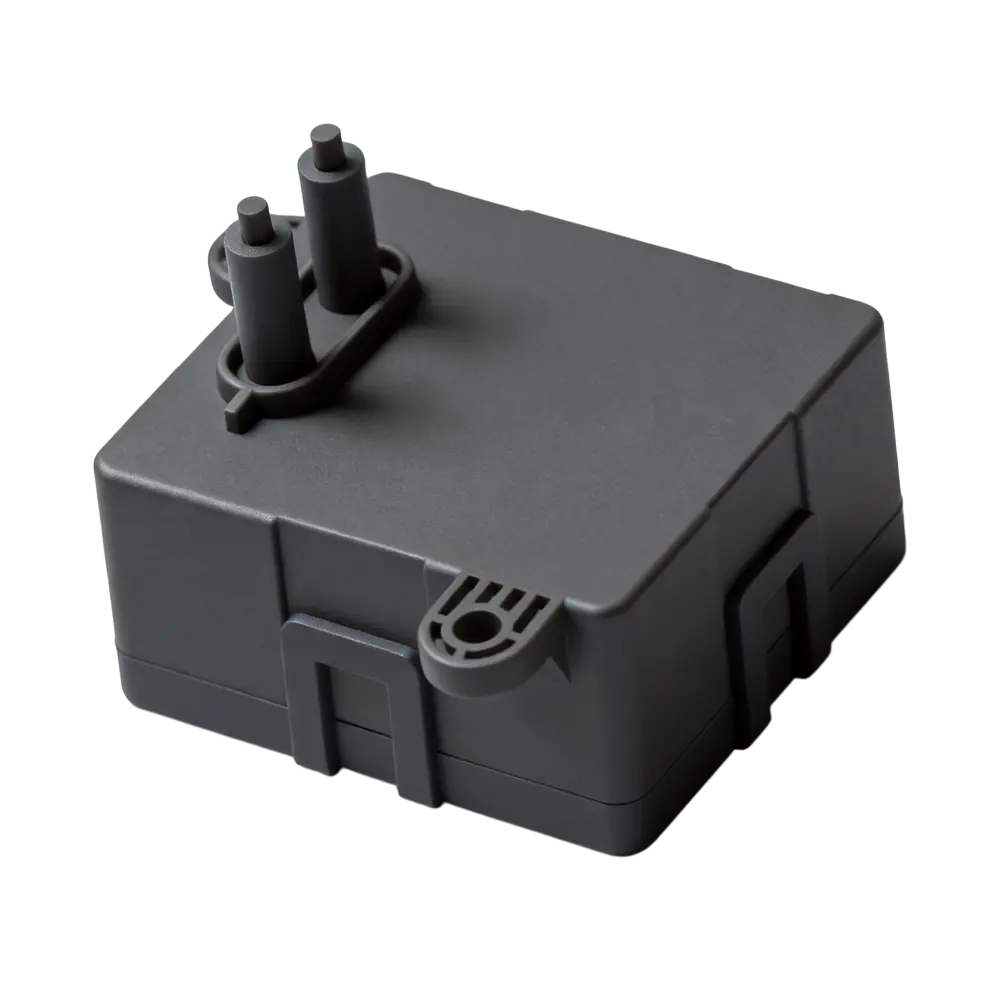

M96 Plasma Generator Module

High-Density Bipolar Ion Output: The M96 generates positive and negative ions at concentrations exceeding 5 million ions/cm³, measured 20 cm from the carbon-brush emitter at an airflow speed of 3 m/s, supporting efficient air-treatment integration.
Low-Power DC Operation: Designed for 9–16 VDC systems, the module operates at ≤40 mA with a standby current of only ≤0.1 mA, making it suitable for energy-conscious OEM equipment.
Hardwired Control and Diagnostic Feedback: Two independent 9–16 V input signals control ion generation, while the DIG diagnostic output allows the host controller to monitor operating status and detect module faults.
Wide Environmental Operating Range: The M96 operates from −40°C to 85°C, supports storage from −40°C to 90°C, and is rated for 35–85% RH, enabling dependable performance in demanding HVAC and air-treatment environments.

TECHNICAL DATA

M96 Plasma Generator Module Specifications

Electrical & Ion Output

Product Name: M96 Plasma Generator Module
Model: M96
Operating Voltage: 9–16 VDC
Operating Current: ≤40 mA
Standby Current: ≤0.1 mA
Ion Output: Positive and negative ions
Ion Concentration: >5 million ions/cm³
Test Conditions: 20 cm from emitter, airflow speed of 3 m/s
Ozone Concentration: <0.05 ppm

Control & Environmental

Control Method: Hardwired control
Control Inputs: Two independent 9–16 V input signals
Diagnostic Output: DIG operating-status feedback
Normal Diagnostic Voltage: 3 V < V_DIG < 5 V
Fault Diagnostic Voltage: V_DIG < 3 V
Operating Temperature: −40°C to 85°C
Storage Temperature: −40°C to 90°C
Operating Humidity: 35–85% RH
Connector: KET MG 640685-5, 5-pin

Note: Ion concentration is measured under specified laboratory conditions. Actual performance may vary with airflow, installation distance and system configuration.

OEM INTEGRATION

Interface & Control

The M96 uses a 5-pin hardwired interface for power, ion-generation control and operating-status feedback. Two independent control inputs allow the host system to enable the module, while the DIG output provides real-time status monitoring.

Connector Pinout

Pin	Signal	Function
1	GND	Power ground
2	VCC	9–16 VDC power input
3	ION SIGNAL	9–16 V control input
4	ION CLERN	9–16 V control input
5	DIG	Diagnostic-status output; recommended external load: 1 MΩ

Connector: KET MG 640685-5

Operating Logic

Pin 3	Pin 4	DIG Output	Module Status
9–16 V	9–16 V	3–5 V	Ion output active
9–16 V	Open or GND	3–5 V	Ion output active
Open or GND	9–16 V	3–5 V	Ion output active
Open or GND	Open or GND	<3 V	Ion output inactive
