PRODUCT FEATURES

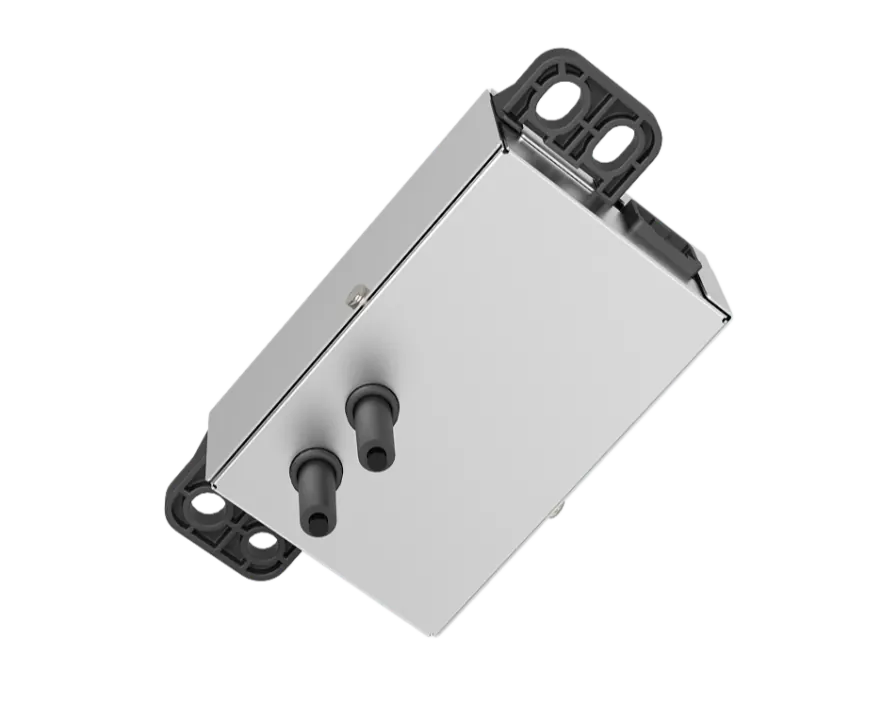

M1801 Plasma Generator Module

High-Concentration Bipolar Ion Output: Generates at least 5 million positive ions/cm³ and 5 million negative ions/cm³ at the initial stage.
Stable Automotive Power Input: Operates across 10–16 VDC with a rated current of 10 mA at 12 VDC.
Independent ON/OFF Control: A dedicated ION terminal lets the host HVAC controller enable or disable ion generation without switching the main supply.
Wide-Temperature, Low-Ozone Design: Supports −30°C to 80°C operation while maintaining ozone concentration below 50 ppb under the specified test condition.

TECHNICAL DATA

M1801 Plasma Generator Module Specifications

Electrical & Ion Performance

Product Function: Positive-ion / negative-ion generator
Operating Voltage: 10–16 VDC
Rated Current: 10 mA at 12 VDC, 25°C ± 5°C
Maximum Current: 50 mA at 12 VDC, −30°C to 80°C
ON/OFF Threshold: Below 2.5 V at 10 V
OFF Leakage Current: Less than 50 µA
Initial Ion Concentration: Positive: ≥5 million ions/cm³; negative: ≥5 million ions/cm³
Ion Concentration After Durability: Positive: ≥2 million ions/cm³; negative: ≥2 million ions/cm³
Ozone Concentration: <50 ppb after one hour in a 2.5 m³ space
Noise: Less than 32 dB(A), no harmful noise

Installation & Environment

Installation Location: HVAC vent duct
Dust Condition: Dust or dirt equivalent to JIS D-0207-C1
Condensation Condition: No water exposure; condensation may be present during air-conditioning cleaning/deodorizing
Operating Temperature: −30°C to 80°C
Storage Temperature: −40°C to 85°C
Steady-State Voltage: 10–16 VDC
Transient Voltage: 18 V for 1 h; 24 V for 1 min
Vibration: 5–500 Hz, 34.3 m/s² (3.5 G max)
Durability Requirement: 12,600 h

Note: Ion concentration depends on measurement distance, airflow, electrode placement and the completed system configuration.

OEM INTEGRATION

Interface & Control

The three-pin interface separates the main power input, ion-generation control signal and ground connection for straightforward host-system integration.
