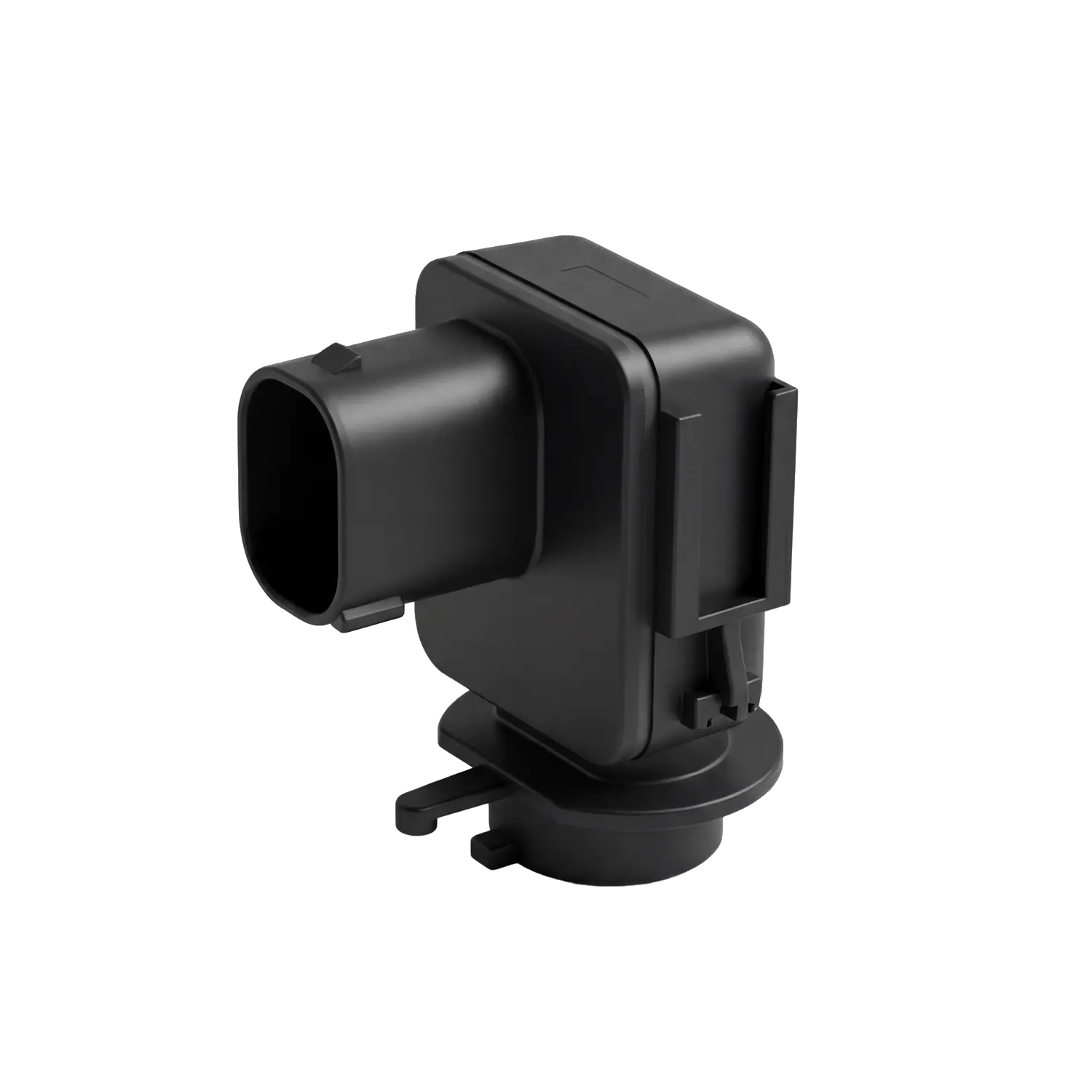

MAXMAC automotive AQS Sensor
Get a Quote

PRODUCT FEATURES

AQS Sensor

  1. MOS Multi-Gas Detection: The automotive AQS Sensor uses MOS sensing technology to detect CO/HC, NOx and NH3, providing real-time pollution data for automatic fresh-air and recirculation control in vehicle HVAC systems.
  2. Application-Oriented Detection Ranges: The sensor measures CO/HC from 1–5,000 ppm, NOx from 0–10 ppm and NH3 from 1–300 ppm. A 30-second preheating time supports fast readiness after vehicle start-up.
  3. Low-Power Automotive Electrical Design: Designed for a 9–16 VDC vehicle supply, the sensor operates at below 50 mA, maintains quiescent current below 10 µA and consumes below 0.6 W for efficient continuous monitoring.
  4. Automotive-Grade Environmental Durability: An IP6K6K rating and an operating range of −40°C to 85°C support demanding vehicle environments. Storage from −40°C to 125°C, buckle/latch/clip connection options and customizable LIN/PWM output simplify OEM integration.

TECHNICAL DATA

AQS Sensor Specifications

Detection Performance

Detection Principle
MOS
Detection Target
CO/HC, NOx, NH3
CO/HC Detection Range
1–5,000 ppm
NOx Detection Range
0–10 ppm
NH3 Detection Range
1–300 ppm

Product & Electrical

Operating Voltage
9–16 VDC
Operating Current
<50 mA
Quiescent Current
<10 µA
Power Consumption
<0.6 W
Preheating Time
30 s

Environmental Performance

IP Rating
IP6K6K
Operating Temperature
−40°C to 85°C
Storage Temperature
−40°C to 125°C
Operating Humidity
5–95% RH, non-condensing

Connection & Output

Connection Type
Buckle, latch, clip
Output Mode
LIN/PWM, customizable
