PM2.5 Sensor - P11
- Automotive-Grade PM2.5 Monitoring: Engineered for demanding in-vehicle environments, the P11 Automotive PM2.5 Sensor measures real-time particulate matter concentrations to support automotive HVAC systems, cabin air purification and intelligent air quality control. Its automotive-grade wide-temperature and high-humidity design operates reliably from −40°C to 85°C and supports 5%–95% RH non-condensing, maintaining stable performance across changing vehicle climate conditions.
- Wide PM2.5 Measurement Range: Provides a measuring range of 0–999 µg/m³ with 1 µg/m³ resolution, enabling accurate monitoring of both low and high particulate concentrations inside the vehicle cabin.
- Fast Response and Stable Accuracy: Delivers a response time of less than 10 seconds with an accuracy of ±15 µg/m³ or ±15%, allowing the HVAC system to react quickly to changing cabin air quality conditions.
- LIN2.1 Communication Interface: Equipped with a LIN2.1 automotive communication interface for reliable data transmission and straightforward integration with vehicle HVAC controllers, dashboards and cabin air quality management systems.
TECHNICAL DATA
PM2.5 Sensor P11 Specifications
Detection Performance
- Product Name
- P11 Automotive PM2.5 Sensor
- Detection Target
- PM2.5 particulate matter
- Measurement Range
- 0–999 µg/m³
- Resolution
- 1 µg/m³
- Accuracy
- ±15 µg/m³ or ±15%
- Response Time
- < 10 s
- Service Life
- ≥ 20,000 h
- Noise
- < 25 dB(A) @ 10 cm
Operating Conditions
- Operating Voltage
- 9–16 VDC
- Operating Current
- 60 mA @ 13.5 VDC
- Operating Temperature
- −40°C to 85°C
- Operating Humidity
- 5%–95% RH, non-condensing
- Storage Temperature
- −40°C to 85°C
- Storage Humidity
- 5%–95% RH, non-condensing
Mechanical & Communication
- Overall Dimensions
- 88.8 mm × 65 mm × 16 mm
- Main Body Dimensions
- 65 mm × 54 mm × 28 mm
- Communication
- LIN2.1
Note: Main body dimensions are basic structural dimensions and do not include mounting brackets or fixing structures.
Document: MAXMAC-P11-EN Rev.1
TECHNICAL DATA
PM2.5 Sensor P11 Datasheet Downloads
Name
Type
Format
Size
Download
PM2.5 Sensor P11 DatasheetDatasheetPDF511 KB
PM2.5
Single-Channel PM2.5 Sensor
Automotive-grade single-channel particle detection for accurate, stable air quality data in intelligent cockpit and HVAC systems.
Automotive-GradeRead more
PM2.5
Dual-Channel PM2.5 Sensor P07
Dual-channel automotive PM2.5 module with standard harness support for full-vehicle integration and cabin purification control.
Automotive-GradeRead more
PM2.5
Dual-Channel PM2.5 Sensor P0906
Automotive-grade dual-channel architecture for enhanced measurement stability and consistency in demanding air quality applications.
Automotive-GradeRead more
HVAC
A54-20 5-in-1 Air Quality Sensor
Complete IAQ sensing platform integrating PM2.5, CO2, TVOC, temperature and humidity for fresh-air units, AHU systems and smart ventilation control.
Read moreHVAC
A54-21 PM2.5 Sensor
Dedicated particulate sensing node for ventilation cleanliness, filter-performance evaluation and indoor air quality monitoring.
Read moreHVAC
A54-22 3-in-1 Air Quality Sensor
Efficient PM2.5, temperature and humidity sensing for particulate monitoring, ventilation systems and indoor comfort management.
Read moreHVAC
A54-23 4-in-1 Air Quality Sensor
Balanced PM2.5, CO2, temperature and humidity sensing for fresh-air units, AHU equipment and commercial HVAC control.
Read more
IAQ

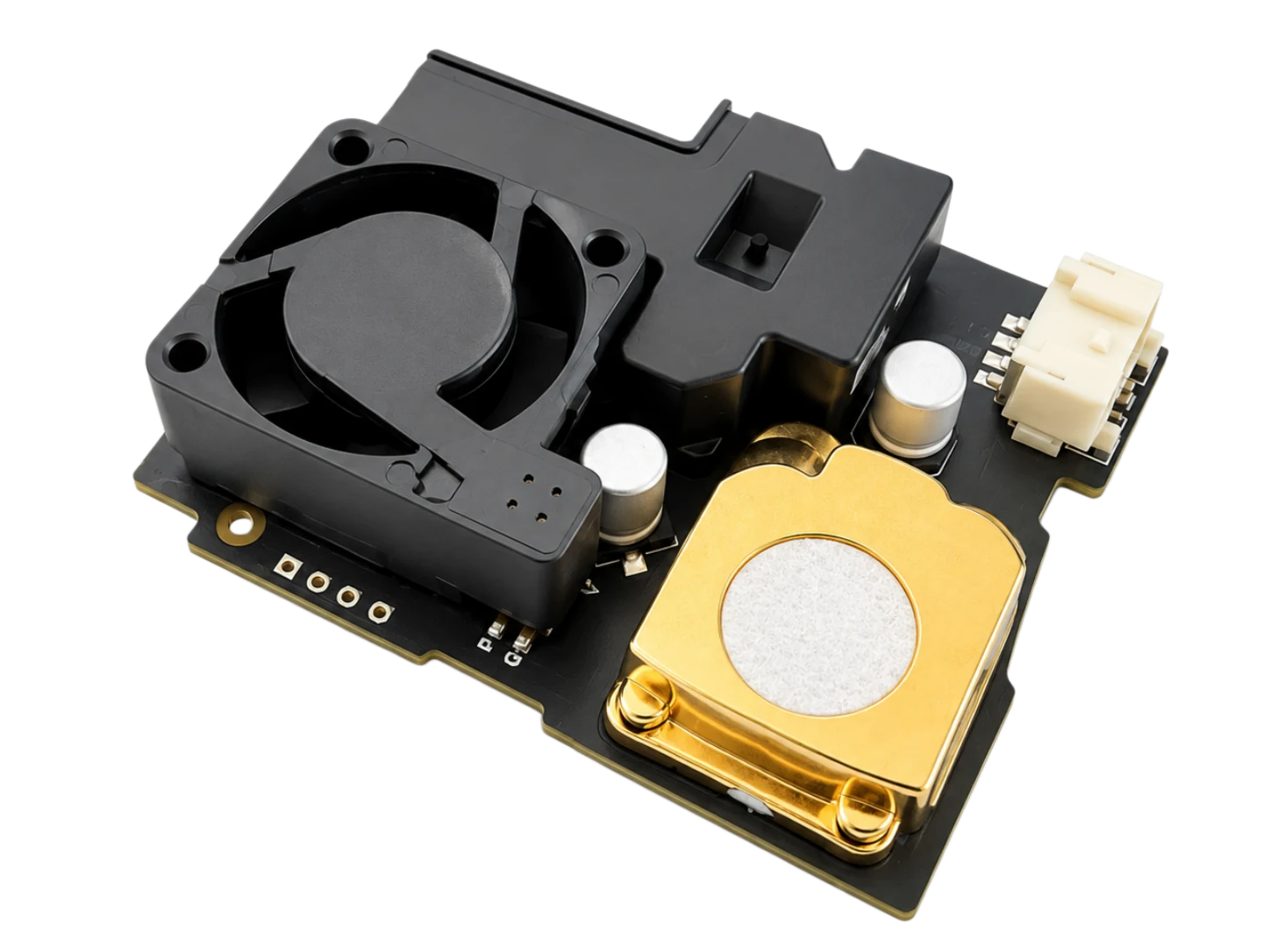

Multi-Sensor Module
