A23 SERIES

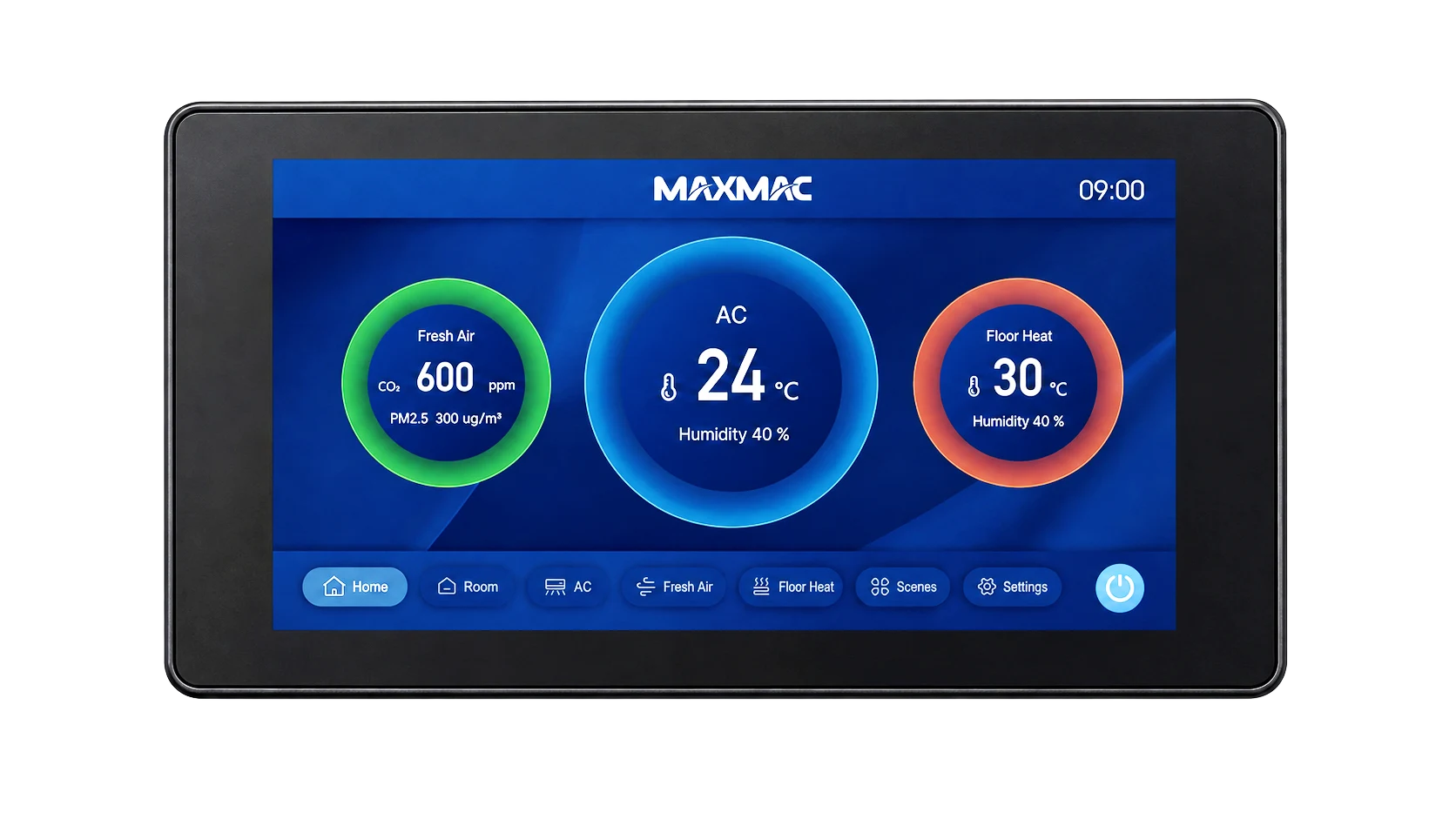

6-A2301-H
6-Inch Full Touchscreen thermostat.
Built-in sensors: Temperature, Humidity, CO₂, PM2.5.
WiFi: Not supported. RS485: Dual RS485.
View ProductA23 SERIES · 2 MODELS
A23 Series 6-Inch Touchscreen Thermostats
Large touchscreen controllers for integrated HVAC control and indoor air quality monitoring.
A23 Series Products
A23 SERIES
6-A2302-H
6-Inch Full Touchscreen thermostat.
Built-in sensors: Temperature, Humidity, CO₂, PM2.5.
WiFi: Standard. RS485: Dual RS485.
View ProductSPECIFICATIONS AT A GLANCE
A23 Model Comparison
Select a model name to explore its specifications.
| 2 MODELSSpecifications | A23 SERIES6-A2301-H | A23 SERIES6-A2302-H |
|---|---|---|
| 01Display & Electrical | ||
| Display | 6-Inch Full-Color Capacitive Touchscreen, 1280 × 720 px | 6-Inch Full-Color Capacitive Touchscreen, 1280 × 720 px |
| Standard color | Gold Grey Front Frame | Gold Grey Front Frame |
| Power supply | DC 12–24 V | DC 12–24 V |
| Power consumption | ≤3 W | ≤3 W |
| 02Integrated Sensors | ||
| PM2.5 | Standard | Standard |
| CO₂ | Standard | Standard |
| Temperature | Standard | Standard |
| Humidity | Standard | Standard |
| TVOC | Not supported | Not supported |
| 03Communication & Interfaces | ||
| RS485 | Dual RS485 | Dual RS485 |
| WiFi | Not supported | Standard |
| Modbus | ||
| Ethernet | ||
| Zigbee | ||
| RF | ||
| 04Mechanical & Environment | ||
| Dimensions | 88 × 170 × 40 mm | 88 × 170 × 40 mm |
| Installation | Standard 86-type wall box; 60 mm hole spacing; M4 screw fastening | Standard 86-type wall box; 60 mm hole spacing; M4 screw fastening |
| Housing | PC+ABS, tempered glass | PC+ABS, tempered glass |
| Operating environment | −10°C to 50°C, 0–95% RH, non-condensing | −10°C to 50°C, 0–95% RH, non-condensing |
Standard features are included. Expandable features require project-specific integration; optional features are available on request. “Not supported” refers to the listed configuration; “Not specified” means no value is listed. See each product page for sensor ranges and accuracy.
Find the Right A23 Configuration
Discuss your sensing, power supply and communication requirements with our team.
